3018-PRO CNC Router Kit: GRBL Control, 3-Axis Engraving for Plastics, Acrylic, Wood

• New Version: Genmitsu CNC 3018-PRO is an upgraded version of 3018. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. The base height is raised to 4cm for better stability. Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVC, and PCB, the Genmitsu can be used on a wide range of projects and materials.
• Upgraded Power Adapter: UL Approved and out-of-the-box support for the drop in 20,000rpm Spindle, no need to modify G-code to ramp up to full speed.
• Controller Software: The Genmitsu 3018-PRO uses Grbl, a high-performance open-source software for controlling movement, and runs on Arduino. Its dependability and simplicity make GRBL an industry standard, so there's no lack of support and resources available when you get stuck.
• Optional Upgraded Parts: Super Size your 3018 CNC to a 3040 by getting a Genmitsu 3040 Y-Axis Extension Kit. The 3040 Aluminum Spoilboard and 3040 MDF Spoilboard for this extension kit are also available to buy.
• Note: Assembly Instructions and User Guide are provided, please find at the Product Guides and Documents Section below and get everything you might need. If you get stuck, check out the SainSmart Resource Center (see at User Guide) or contact us with any questions that arise.

From the brand





1.
2.

   Here at SainSmart we have been serving the maker community for years, starting in the early days with high-quality electronic parts and into today with our Genmitsu line of CNC mills for every experience level.

   We love making, we are just a bit different than the people we make our products for. Our passion is making the best, most affordable tools available and getting them out to the maker community at large to do their thing!


3.

   Genmitsu Router Bits Database

   Download the database and start your engraving easily. (Check at the Product Guide and Documents of the product page)


4.







   CNC Machine




5.







   CNC Machine




6.







   CNC Router Bits




7.







   CNC Upgrade Accessories









Product Description

Genmitsu 3018-PRO CNC Machine

Designed for the absolute beginner, the Genmitsu is a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models that you are coding and designing.

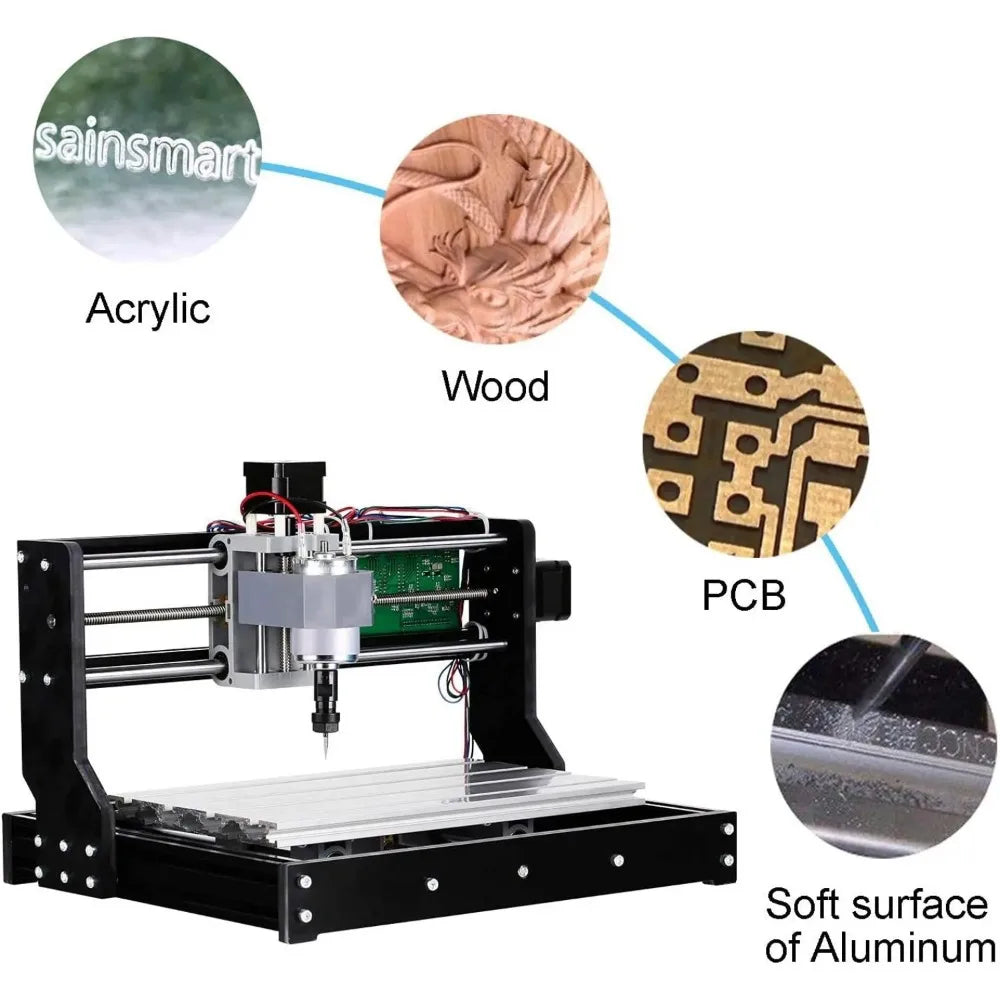

It is capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, and a wide range of other materials. You will find the SainSmart Genmitsu an excellent self-learning tool that allows you to DIY your great projects on a cost-effective platform without the risk of damaging expensive equipment.

SPECIFICATIONS

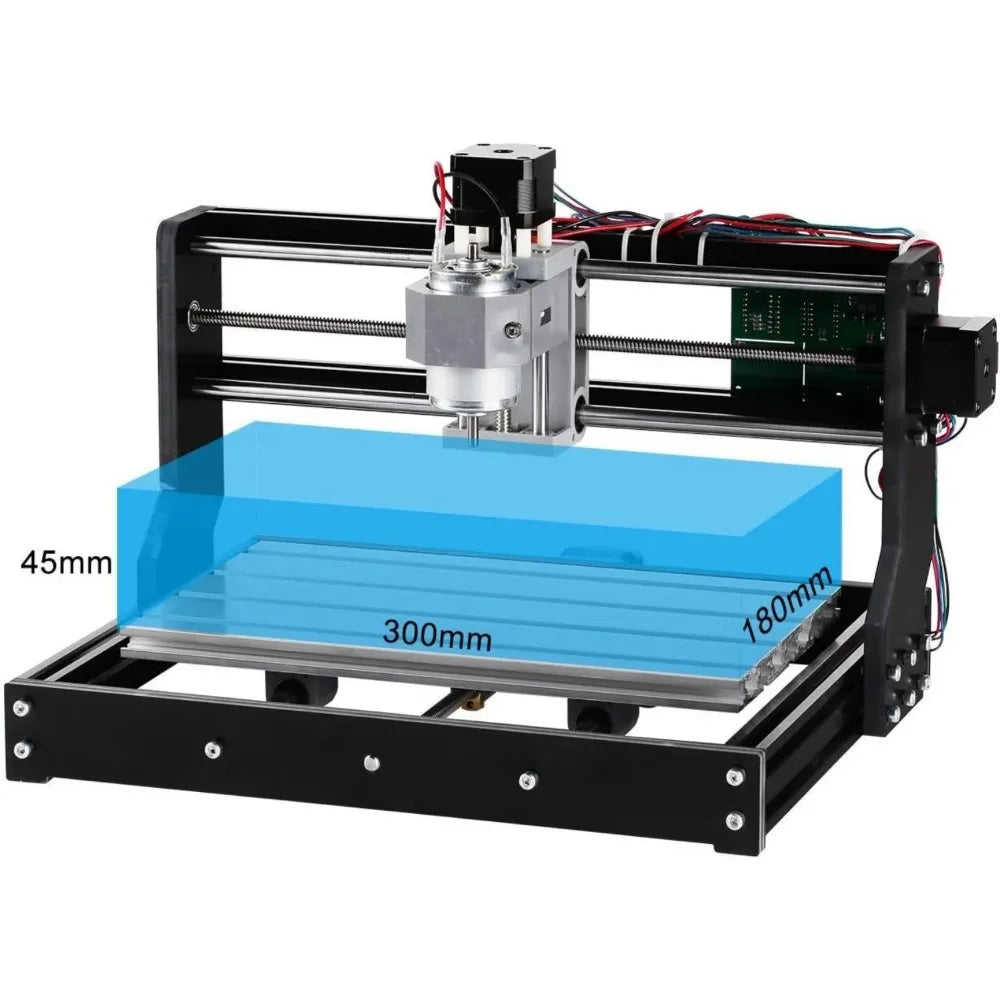

Effective Engraving Area	300 x 180 x 45 mm(11.8 x 7.1 x 1.8")
Frame Size	400 x 330 x 240 mm(15.7 x 13.0 x 9.4")
Frame Material	PF+ Aluminum
Z-Axis Component Material	Nylon
Spindle	775 motor, 24V, 10000 RPM
Rated power	60W; Maximum power: 120W

Step Motor	1.3 A, 12V, 0.25 Nm torque (2.2 in lb)
Drill Bits	Tip 0.1 mm, 20 degree, Diameter 3.175 mm
Supported OS	Windows XP, Windows 7, Windows 8, Windows 10, MAC OS
Software	Grbl control(Candle)
Power Supply	24V/5A

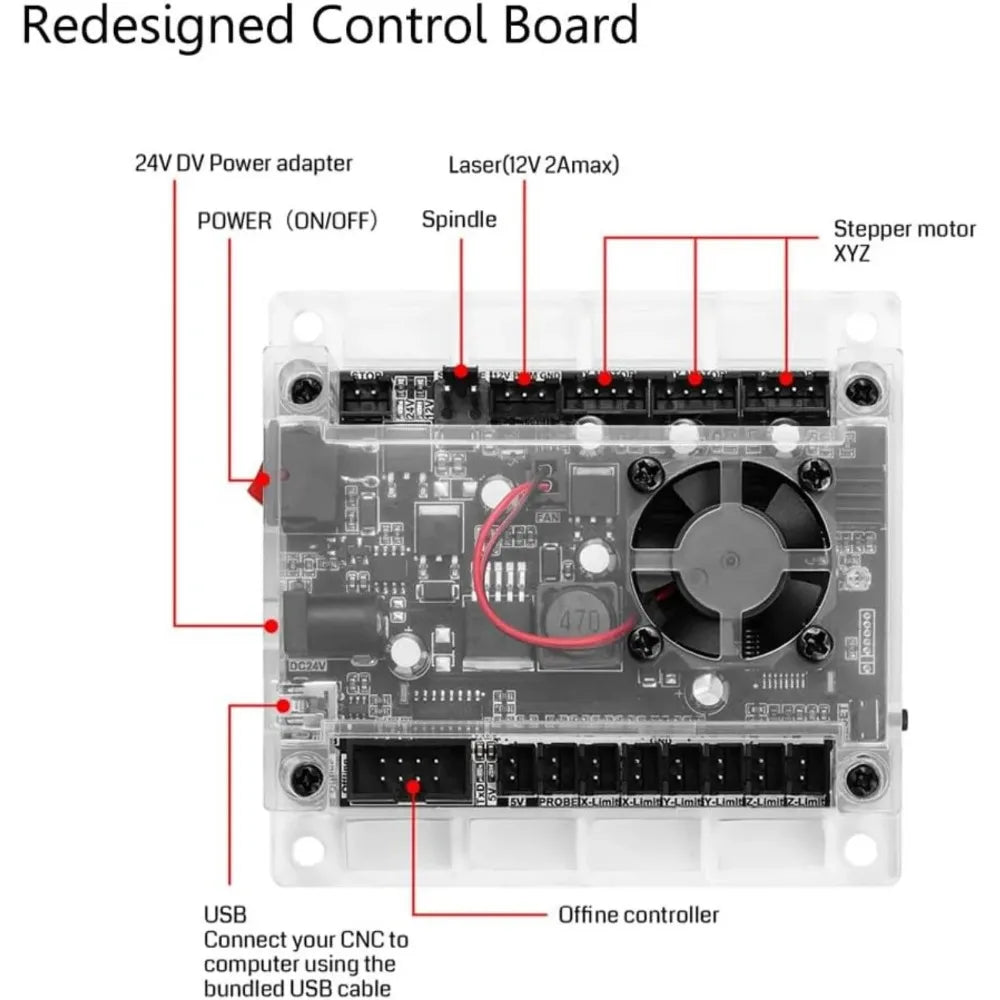

Upgraded Power Adapter The upgraded power adapter comes with CE, FCC & UL certifications, with over-voltage protection, over-current protection, over-temperature protection, and short-circuit protection. And it supports the drop in 20,000rpm Spindle, no need to modify G-code to ramp up to full speed.	Redesigned Control Board Equipped with ABS case and fan, the performance and stability of the new mainboard have been greatly improved.	Laser Module Available If you are a CNC engraving enthusiast looking for an upgrade, you can add the matching SainSmart laser module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity. (Sold Separately, ASIN: B09XHSF6PV or B09C8J9XXZ)	Built to Suit Your Needs Support and convenience for years to come. Your Genmitsu3018-PRO comes with access to a wide variety of accessories, parts, and upgrades., like the easy-to-install dust shoe for dust removal, the KABA enclosure for noise reduction, and MDF spoilboard for protecting the router table from damage, enhanced all metal parts, and more. (Sold Separately)

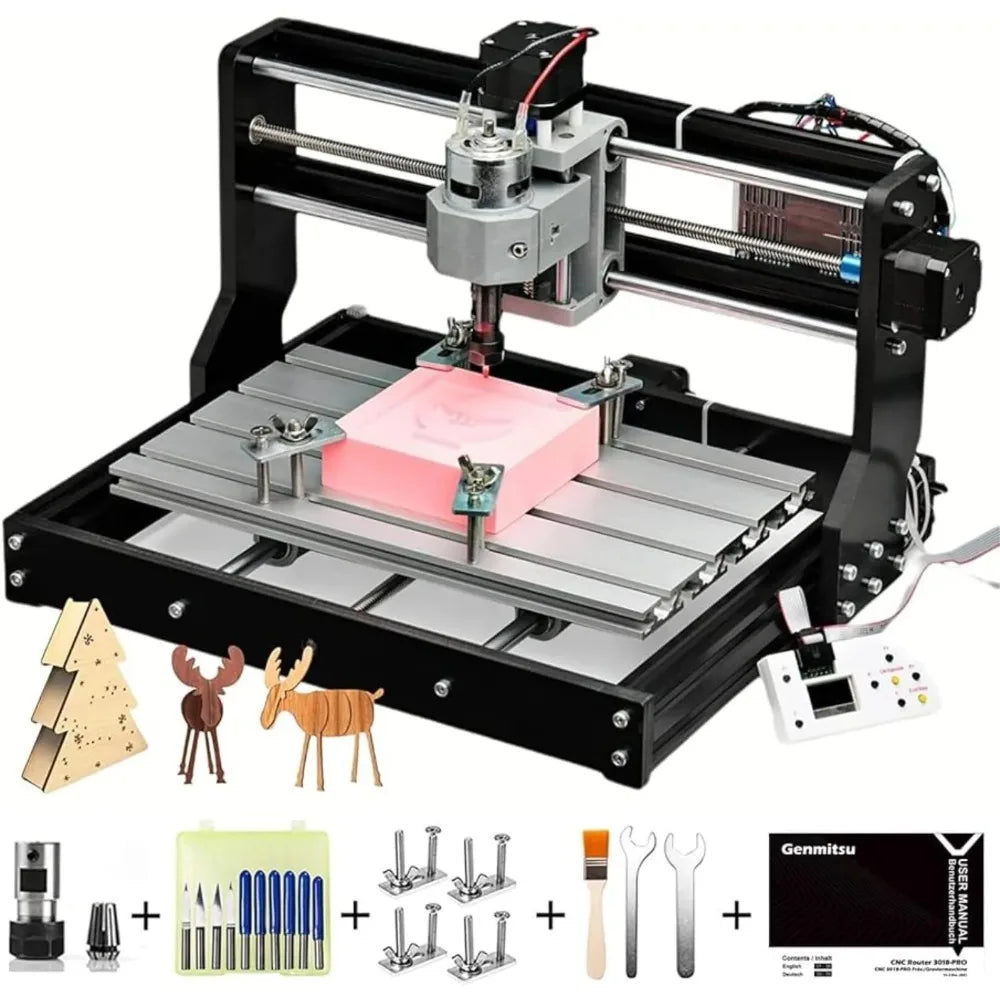

WHAT'S IN THE BOX

1 x 3018 PRO DIY Router Kit

1 x Offline Controller

1 x Extension Rod with ER11 Collet (3.175mm)

4 x Plate Clamps

10 x CNC Router Bits (Cutting Angle: 20 Degree; Shank Diameter: 3.175mm; Tip Diameter: 0.1mm)

1 x Power Supply

1 x English Manual

1 x USB Stick
